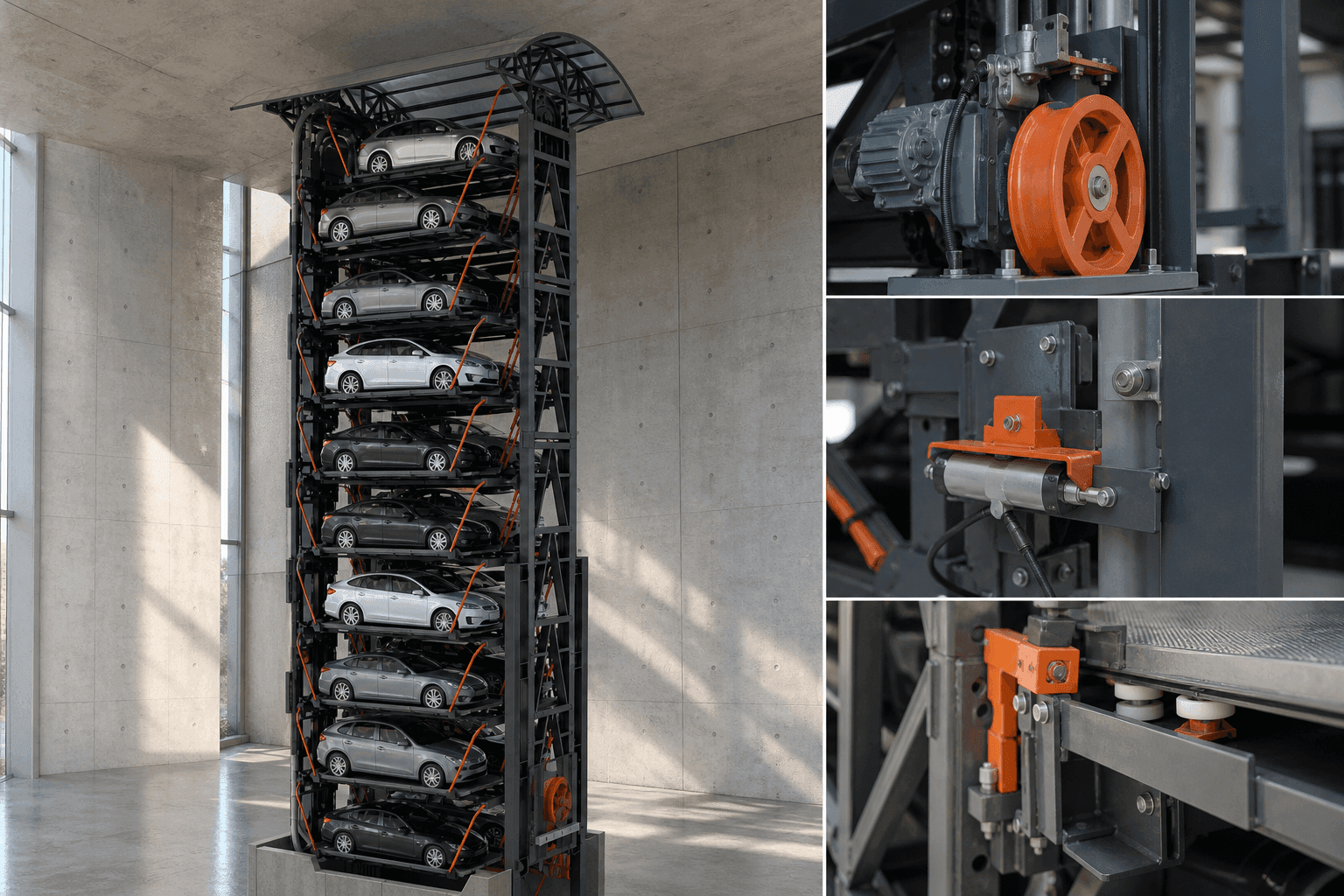

Vertical rotary parking carousel
The circulating carrier chain, indexed safety control and guided vehicle platform are presented with the complete tower.

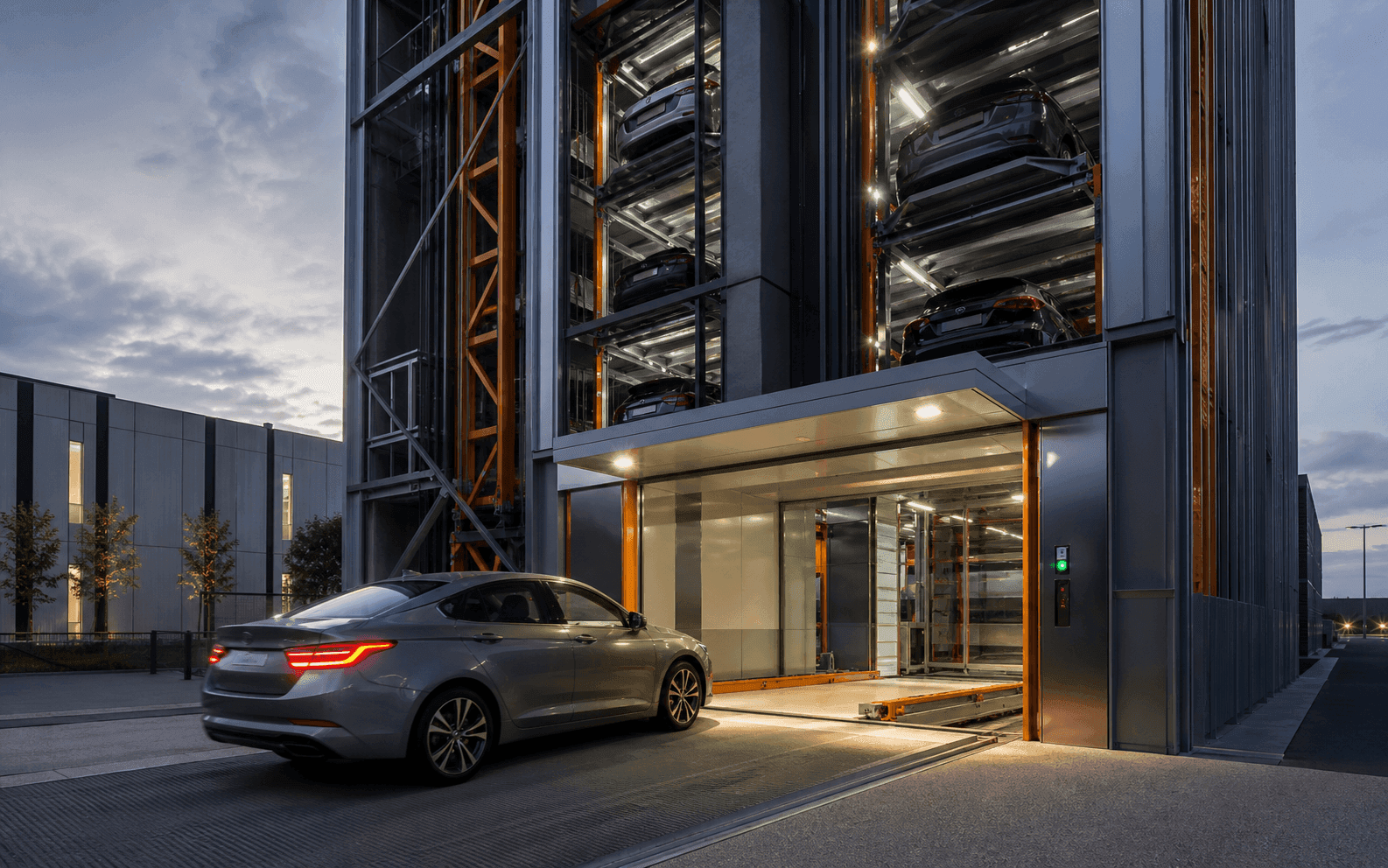

Fully automatic parking systems
Automatic Rotary Parking System
Rotary parking system is one of the most space-saving systems that allows you to park up to 18 SUVs or 20 sedans in only 2 conventional parking spaces. Engineered for excellence, each platform boasts a 2000/2500kg capacity, surpassing the other offerings on the market. The system is independent, no parking attendant is required. By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically and find the faster path to deliver your vehicle down to ground either clockwise or counterclockwise.
YFYS engineered parking systems8 sedans / 10 sedans / 12 sedans / 14 sedans / 16 sedans / 18 sedans / 20 sedansCar spaces
10,275 / 12,115 / 13,955 / 15,795 / 17,635 / 19,471 / 23,311System height (mm)
2000kgRated capacity (kg)
System overview
Engineered for practical parking capacity.
Rotary parking system is one of the most space-saving systems that allows you to park up to 18 SUVs or 20 sedans in only 2 conventional parking spaces. Engineered for excellence, each platform boasts a 2000/2500kg capacity, surpassing the other offerings on the market. The system is independent, no parking attendant is required. By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically and find the faster path to deliver your vehicle down to ground either clockwise or counterclockwise.
Product highlights
Rotary parking system is one of the most space-saving systems that allows you to park up to 18 SUVs or 20 sedans in only 2 conventional parking spaces. Engineered for excellence, each platform boasts a 2000/2500kg capacity, surpassing the other offerings on the market. The system is independent, no parking attendant is required. By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically and find the faster path to deliver your vehicle down to ground either clockwise or counterclockwise.
Suitable for all types of vehicles
Least cover area than other automated parking systems, сovering area as small as 35.75m2
Up to 10 times space saving than traditional parking
Quick time of car retrieval, driving by German motor
Easy to operate
20+ core safety technologies
Modular and simpler installation, averaging 5 days per system
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model Number
- Automatic Rotary Parking System / Automatic Rotary Parking System / Automatic Rotary Parking System / Automatic Rotary Parking System / Automatic Rotary Parking System / Automatic Rotary Parking System / Automatic Rotary Parking System
- Car spaces
- 8 sedans / 10 sedans / 12 sedans / 14 sedans / 16 sedans / 18 sedans / 20 sedans
- Motor power (kw)
- 7.5 / 7.5 / 11 / 15 / 15 / 24.2 / 24.2
- System height (mm)
- 10,275 / 12,115 / 13,955 / 15,795 / 17,635 / 19,471 / 23,311
- Max retrieve time (s)
- 92 / 115 / 126 / 130 / 148 / 135 / 150
- Rated capacity (kg)
- 2000kg
- Car size (mm)
- Sedans only; L*W*H=5300*2100*1600
- Cover area (mm)
- W*D=5,200*6,450
- Power supply
- AC 480V / 415V / 380V / 220V, 3PH, 50/60HZ
- Operation
- Touch Screen / IC Card / Button
- Finishing
- Powder coating / Hot-dipped galvanizing (optional)
Product engineering
Automatic Rotary Parking System, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
