Pit installation

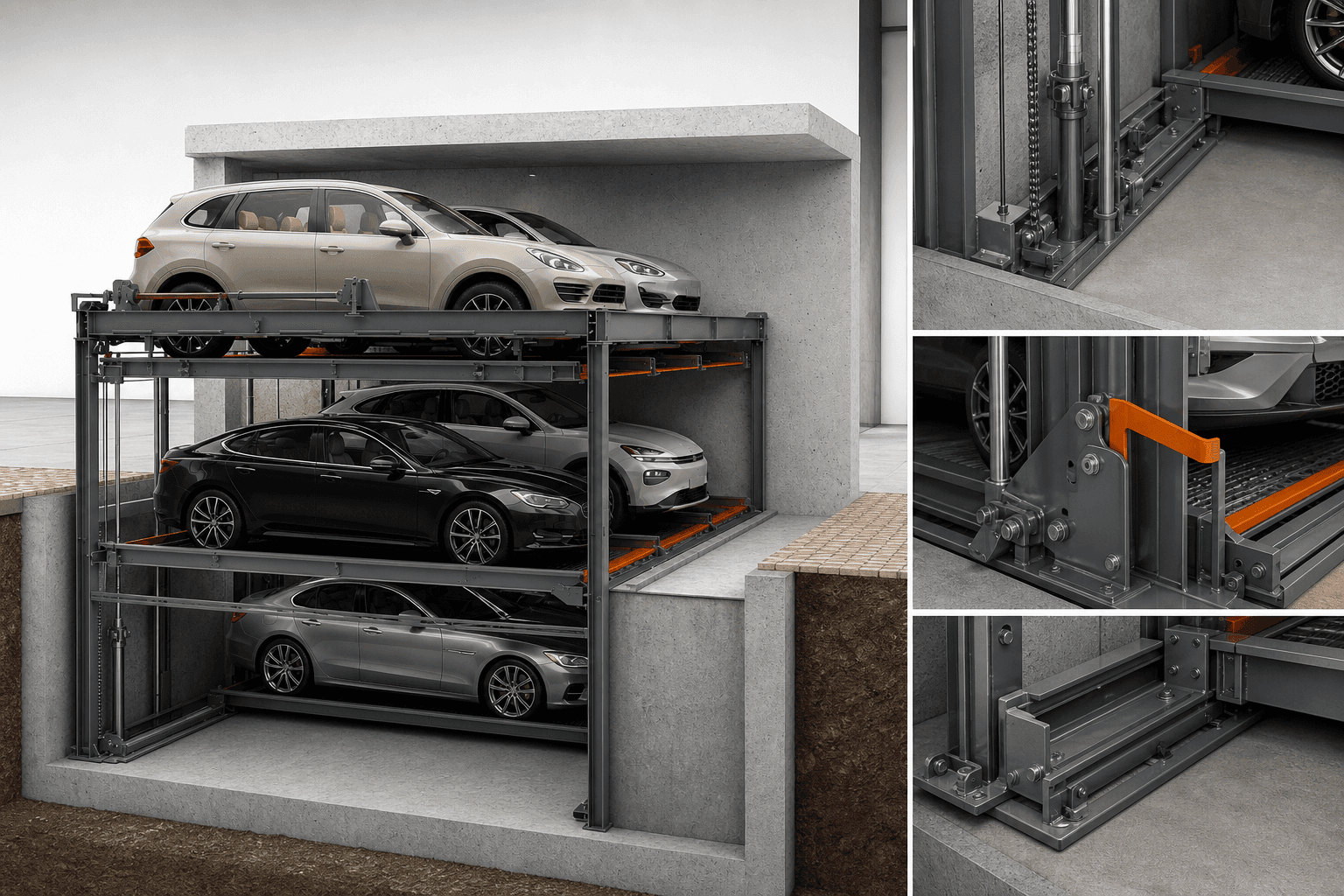

Multi-vehicle below-grade parking
Above-grade access and below-grade storage are presented together with lifting guides, locking hardware and reinforced base rails.
Pit parking solutions
Independent Pit Puzzle Parking System
The system is semi-automatic puzzle parking type, one of the most space-saving system that parks three cars on top of each other. One level is in pit and another two on above, the middle level is for access. The user slides his IC card or inputs the space number on operation panel to shift spaces vertically or horizontally and then move his space to entry level automatically. Safety gate is optional to protect cars from theft or sabotage.
YFYS engineered parking systems3 / 3Levels
2700kg / 2100kgLifting capacity
1700mm / 1550mmAvailable car height
System overview
Engineered for practical parking capacity.
The system is semi-automatic puzzle parking type, one of the most space-saving system that parks three cars on top of each other. One level is in pit and another two on above, the middle level is for access. The user slides his IC card or inputs the space number on operation panel to shift spaces vertically or horizontally and then move his space to entry level automatically. Safety gate is optional to protect cars from theft or sabotage.
Product highlights
The system is semi-automatic puzzle parking type, one of the most space-saving system that parks three cars on top of each other. One level is in pit and another two on above, the middle level is for access. The user slides his IC card or inputs the space number on operation panel to shift spaces vertically or horizontally and then move his space to entry level automatically. Safety gate is optional to protect cars from theft or sabotage.
Hydraulic driven
Capacity of each platform is 2100kg or 2700kg
Platform width up to 2400mm
Recommended car spaces in each system < 32 vehicles.
Programed automatic PLC control
Operation by ID card or buttons
Galvanized platform plates
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Independent Pit Puzzle Parking System / Independent Pit Puzzle Parking System
- Levels
- 3 / 3
- Lifting capacity
- 2700kg / 2100kg
- Available car length
- 5000mm / 5000mm
- Available car width
- 1950mm / 1950mm
- Available car height
- 1700mm / 1550mm
- Power pack
- 5Kw hydraulic pump / 4Kw hydraulic pump
- Available voltage of power supply
- 200V-480V, 3 Phase, 50/60Hz / 200V-480V, 3 Phase, 50/60Hz
- Operation mode
- Code & ID card / Code & ID card
- Operation voltage
- 24V / 24V
- Safety lock
- Anti-falling lock / Anti-falling lock
- Lock release
- Electric auto release / Electric auto release
- Rising / descending time
- <55s / <55s
- Finishing
- Powdering coating / Powder coating
Product engineering
Independent Pit Puzzle Parking System, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
Explore project applicationsProject resources
Confirm the system against your site conditions.
