Lift and slide mechanics

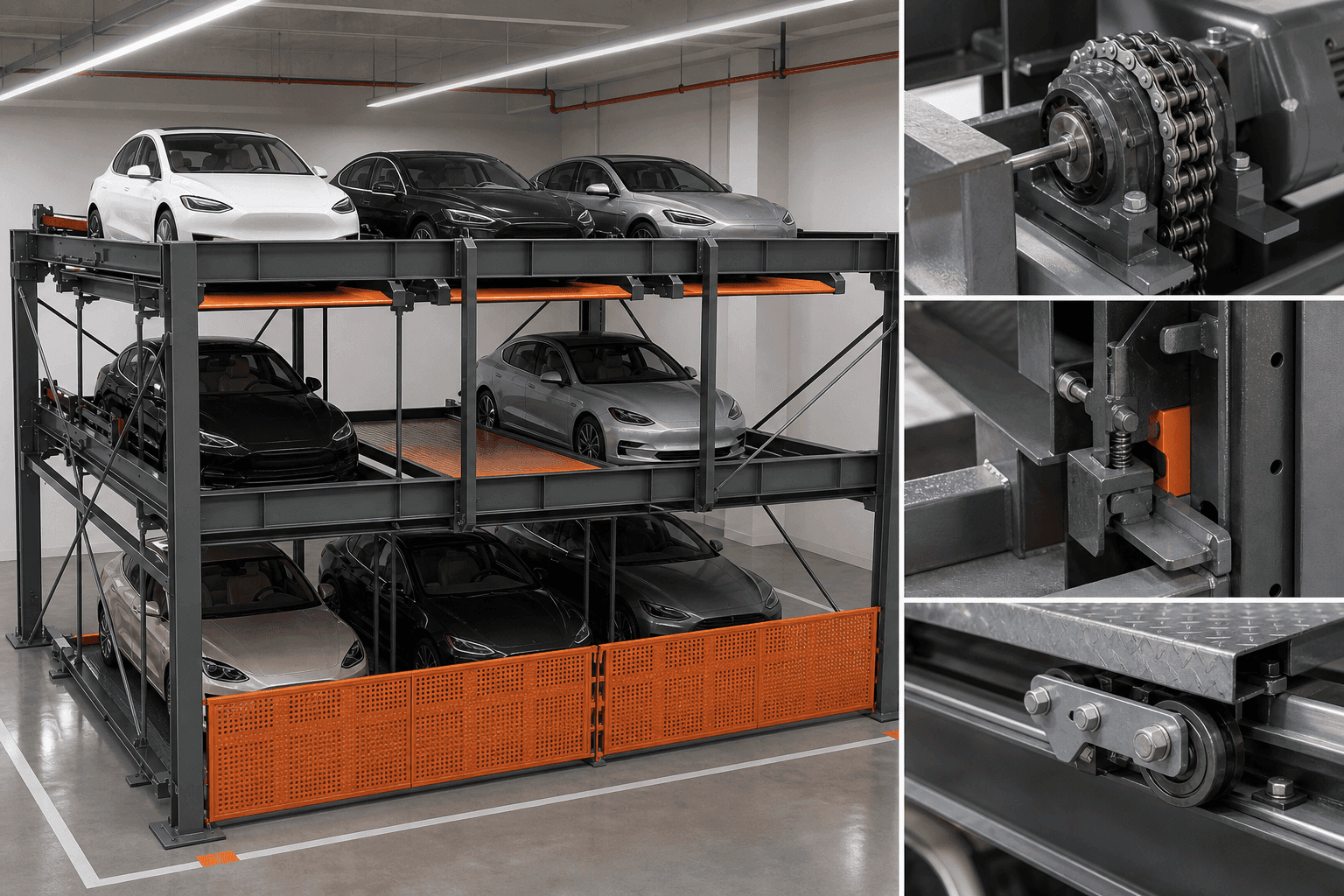

Three-level puzzle parking matrix
A realistic high-density frame combines vertical chains, anti-fall locks and guided horizontal platform rollers.
Lift-slide puzzle systems
Three-Level Lift-Slide Parking System
Three-Level Lift-Slide Parking System is a kind of automatic parking equipment. It is suitable for both commercial and residential parking purposes. It moves vertically & horizontally with the platform to park & retrieve car freely. Three-Level Lift-Slide Parking System of product can be combined together with Yifeng Yongsheng PFP series of product toincrease parking spaces. It is driven by hydraulic.
YFYS engineered parking systems3Levels
2500kg / 2000kgLifting capacity
2050mm / 1550mmAvailable car height
System overview
Engineered for practical parking capacity.
Three-Level Lift-Slide Parking System is a kind of automatic parking equipment. It is suitable for both commercial and residential parking purposes. It moves vertically & horizontally with the platform to park & retrieve car freely. Three-Level Lift-Slide Parking System of product can be combined together with Yifeng Yongsheng PFP series of product toincrease parking spaces. It is driven by hydraulic.
Product highlights
Three-Level Lift-Slide Parking System is a kind of automatic parking equipment. It is suitable for both commercial and residential parking purposes. It moves vertically & horizontally with the platform to park & retrieve car freely. Three-Level Lift-Slide Parking System of product can be combined together with Yifeng Yongsheng PFP series of product toincrease parking spaces. It is driven by hydraulic.
Q&A： 1. Could Three-Level Lift-Slide Parking System be used outdoor? Yes. Firstly, the finishing of structure is zinc coating with a better water-proof. Secondly, extra covers could be installed to prevent from rain, snow, and heavy wind. 2. Could Three-Level Lift-Slide Parking System be used for parking SUV? Three-Level Lift-Slide Parking System could be customized to t for SUV, for detailed requirements please contact Yifeng Yongsheng sales. 3. What’s the voltage requirement? The standard voltage should be 380v, 3P. Some local voltages could be customized according to clients' request. 4. Can this product still operate if electricity failure happens? No, if electricity failure happens often in your place, you have to have a back-up generator to supply power. 5. Can Three-Level Lift-Slide Parking System installed by customer themselves? If you’re new for our Three-Level Lift-Slide Parking System, we recommend sending our engineer to guide the installation.
Three-Level Lift-Slide Parking System is a kind of automatic parking system, developed by Yifeng Yongsheng. The parking space selected is moved to the desired position by means of an automatic control system, and the parking spaces can be shifted vertically or horizontally. Entrance level platforms move horizontally only and upper level platforms move vertically, meanwhile top level platforms move vertically only and lower level platform move horizontally, with always one column of platforms less except the top level platform. By swiping the card or input the code, the system automatically moves the platforms in the desired position. To collect a car parked on the upper level, the lower level platforms will first move to one side to provide an empty space into which the required platform is lowered.
A new comprehensive introduction of Three-Level Lift-Slide Parking System
Standard galvanizing applied for daily indoor use
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Three-Level Lift-Slide Parking System
- Levels
- 3
- Lifting capacity
- 2500kg / 2000kg
- Available car length
- 5000mm
- Available car width
- 1850mm
- Available car height
- 2050mm / 1550mm
- Power pack
- 5.5Kw hydraulic pump
- Available voltage of power supply
- 200V-480V, 3 Phase, 50/60Hz
- Operation mode
- Code & ID card
- Operation voltage
- 24V
- Safety lock
- Anti-falling frame
- Rising / descending time
- <55s
- Finishing
- Powdering coating
Product engineering
Three-Level Lift-Slide Parking System, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
