System configuration

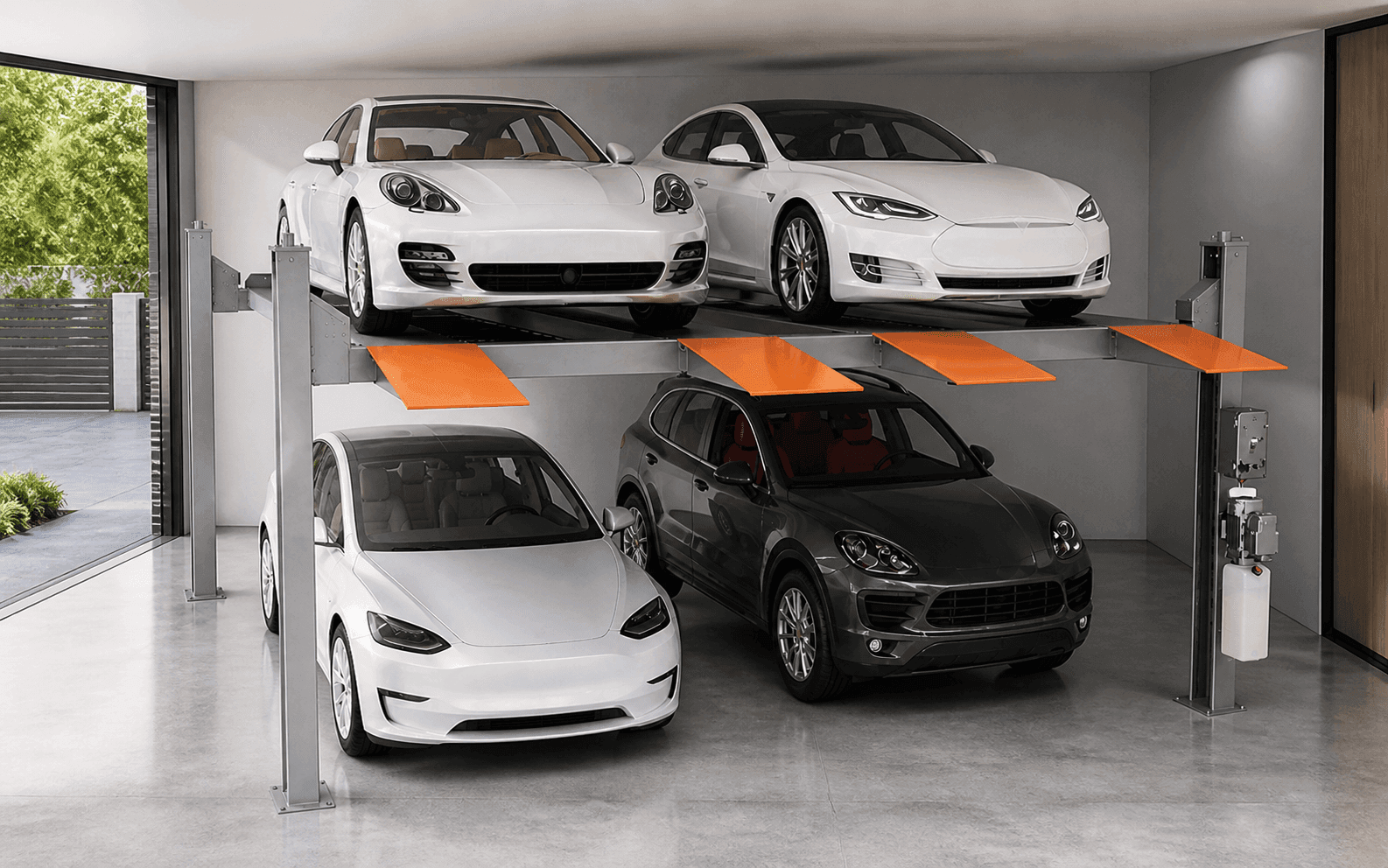

Four vehicles in two clear parking bays
Twin independently supported platforms create two upper and two lower spaces while keeping the central parking area clear of posts.
Two-level parking lifts
Dual-Platform Four-Post Parking Lift
They say more is better than less. Confirmation of this comes with our four-post twin platforms parking lift. Dual-Platform Four-Post Parking Lift-2T, "2 above + 2 below" parking spaces with a capacity of 4 tons together, provides maximum opportunities for parking & storing up to 4 cars. Multiple safety devises ensure reliable and stable operation and the elimination of middle posts makes it a great space-saver.
YFYS engineered parking systems4000kgLifting capacity
2000mmLifting height
1952mmUsable platform width
System overview
Engineered for practical parking capacity.
They say more is better than less. Confirmation of this comes with our four-post twin platforms parking lift. Dual-Platform Four-Post Parking Lift-2T, "2 above + 2 below" parking spaces with a capacity of 4 tons together, provides maximum opportunities for parking & storing up to 4 cars. Multiple safety devises ensure reliable and stable operation and the elimination of middle posts makes it a great space-saver.
Product highlights
They say more is better than less. Confirmation of this comes with our four-post twin platforms parking lift. Dual-Platform Four-Post Parking Lift-2T, "2 above + 2 below" parking spaces with a capacity of 4 tons together, provides maximum opportunities for parking & storing up to 4 cars. Multiple safety devises ensure reliable and stable operation and the elimination of middle posts makes it a great space-saver.
Double-wide design for 4 vehicles
Dependent parking
4000kg overall lifting capacity
Ground car height: 1750mm
Hidden single hydraulic cylinder
Increased sheave diameter reduces cable fatigue
Mechanical anti-falling locks allow multiple stopping heights
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Dual-Platform Four-Post Parking Lift-2T
- Lifting capacity
- 4000kg
- Lifting height
- 2000mm
- Usable platform width
- 1952mm
- Available voltage of power supply
- 100V-480V, 1 or 3 Phase, 50/60Hz
- Operation mode
- Key switch
- Operation voltage
- 24V
- Safety lock
- Dynamic anti-falling lock
- Lock release
- Electric auto release
- Finishing
- Powder coating
Product engineering
Dual-Platform Four-Post Parking Lift, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.

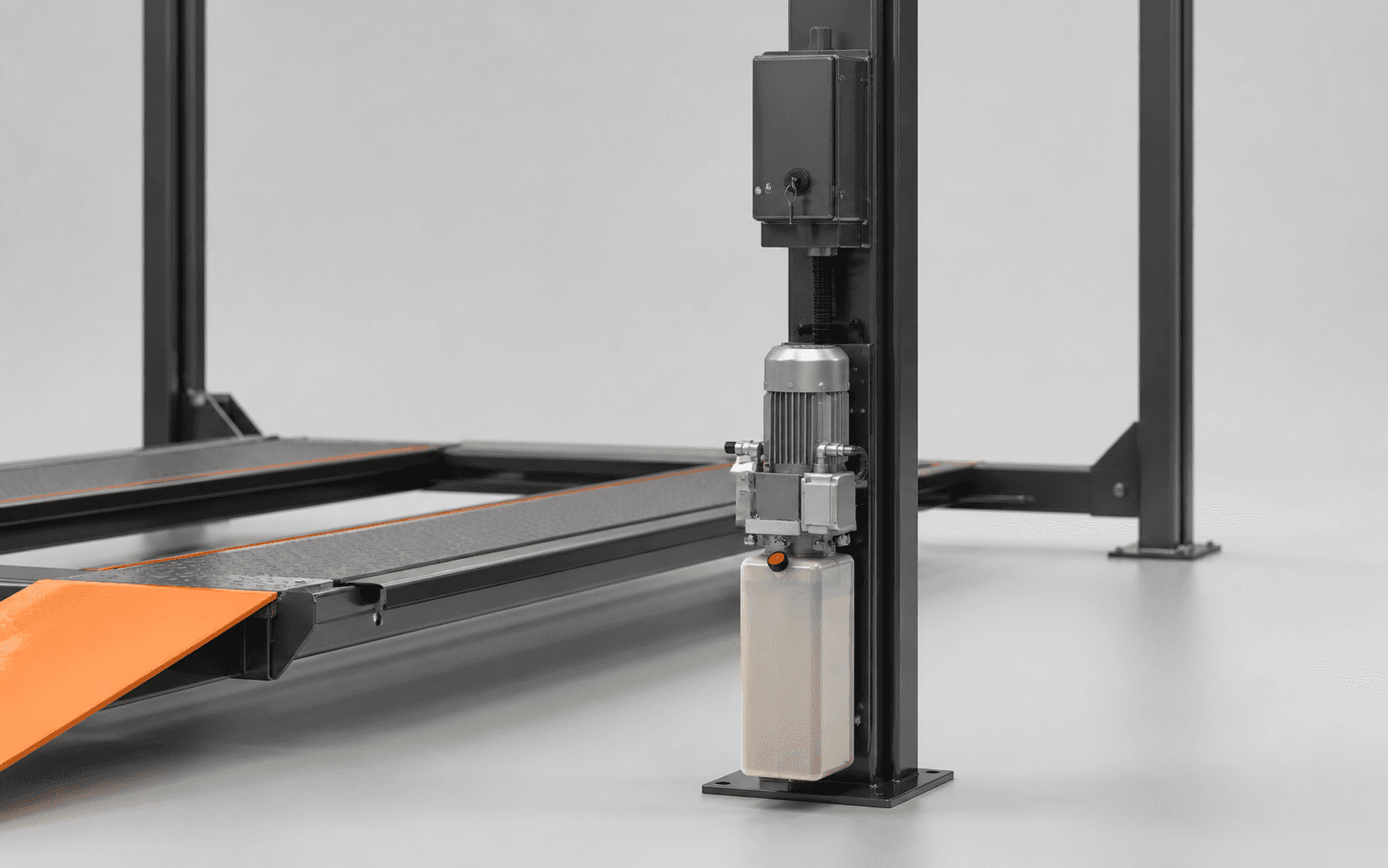

Hydraulic control
Stable synchronized lifting
A compact hydraulic power unit and balanced lifting circuit provide controlled platform travel with accessible service points.

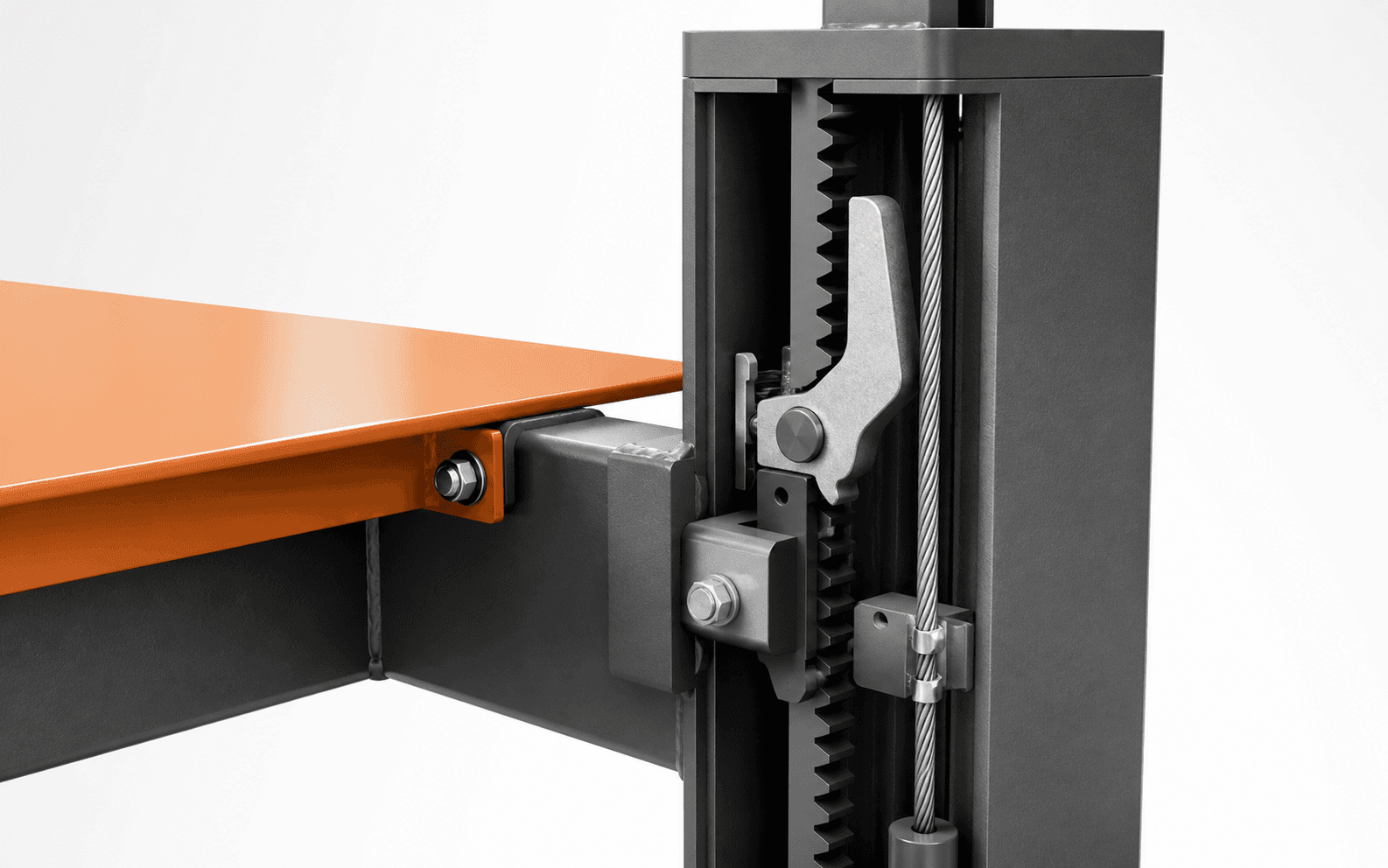

Safety system
Positive mechanical anti-fall locking
Mechanical locks engage along the lifting path to secure each platform during parking and maintenance operations.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
Explore project applicationsProject resources
Confirm the system against your site conditions.
