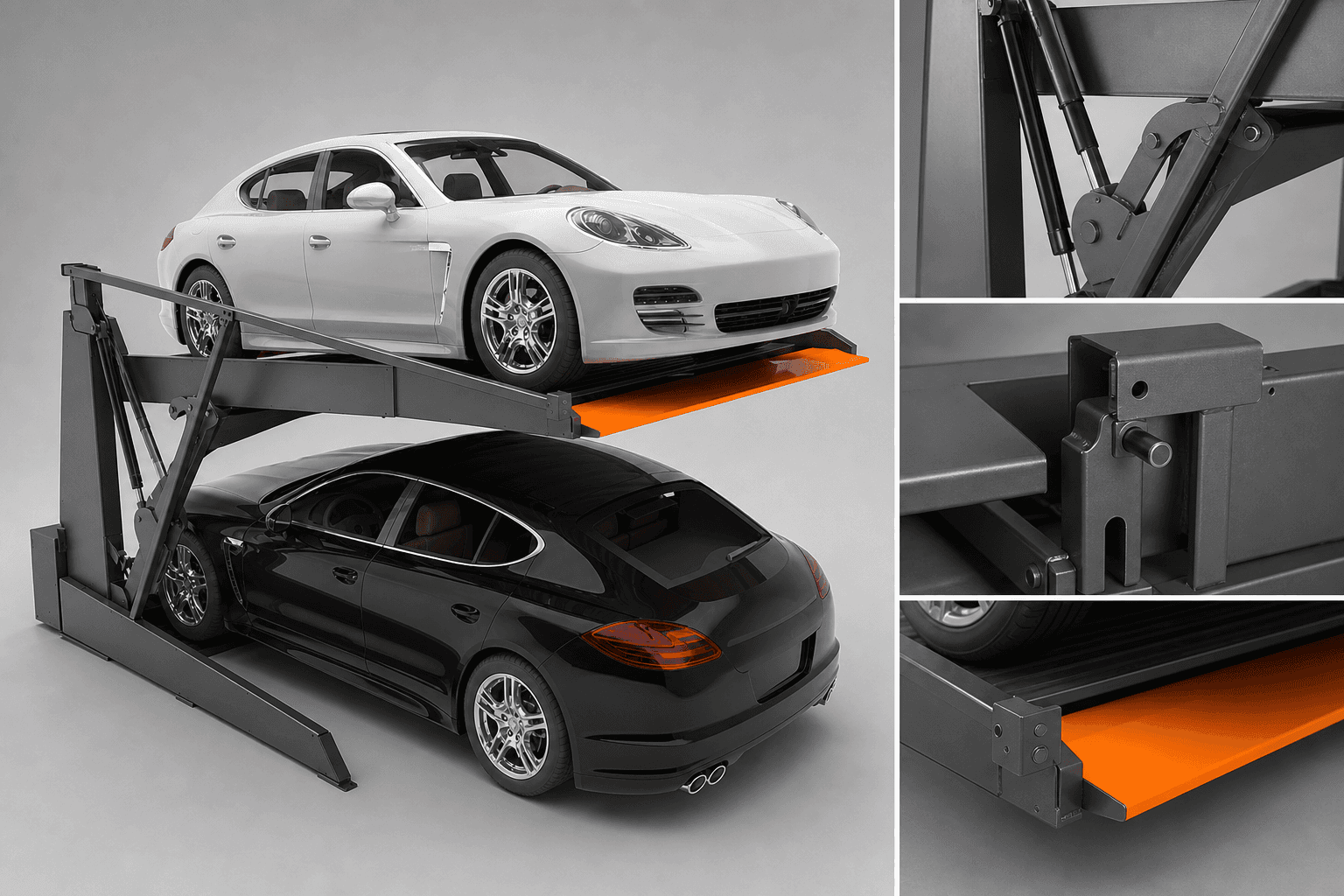

Tilting two-post parking platform
The inclined platform geometry is shown with its hydraulic linkage, rotation pivot and positive mechanical locking point.
Two-level parking lifts
Low-Ceiling Tilting Parking Lift
Low-Ceiling Tilting Parking Lift has tilted platform that makes more parking spaces in tight area possible. It can stack 2 sedans above each other and is suitable for both commercial and residential buildings that have limited ceiling clearances and restricted vehicle heights. The car on ground has to be removed to use the upper platform, ideal for cases when the upper platform used for permanent parking and the ground space for short-time parking. Individual operation can be easily made by the key switch panel in front of system.
YFYS engineered parking systems2000kgLifting capacity
1600mmLifting height
2100mmUsable platform width
System overview
Engineered for practical parking capacity.
Low-Ceiling Tilting Parking Lift has tilted platform that makes more parking spaces in tight area possible. It can stack 2 sedans above each other and is suitable for both commercial and residential buildings that have limited ceiling clearances and restricted vehicle heights. The car on ground has to be removed to use the upper platform, ideal for cases when the upper platform used for permanent parking and the ground space for short-time parking. Individual operation can be easily made by the key switch panel in front of system.
Product highlights
Low-Ceiling Tilting Parking Lift has tilted platform that makes more parking spaces in tight area possible. It can stack 2 sedans above each other and is suitable for both commercial and residential buildings that have limited ceiling clearances and restricted vehicle heights. The car on ground has to be removed to use the upper platform, ideal for cases when the upper platform used for permanent parking and the ground space for short-time parking. Individual operation can be easily made by the key switch panel in front of system.
The two post tilting parking lift is a kind of valet parking. Low-Ceiling Tilting Parking Lift is only used for sedans, and it is a subsidiary product of Low-Ceiling Tilting Parking Lift when you don’t have enough ceiling clearance. It moves vertically, the users have to clear the ground level to get the higher level car down.It is hydraulic driven type that lifted by cylinders. Our standard lifting capacity is 2000kg, different finishing and waterproof treatment are available at customer’s request.
Designed for low ceiling height
Galvanized platform with wave plate for better parking
10 degree tilting platform
Dual hydraulic lifting cylinders direct drive
Individual hydraulic power pack and control panel
Self-standing and self-support structure
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Low-Ceiling Tilting Parking Lift
- Lifting capacity
- 2000kg
- Lifting height
- 1600mm
- Usable platform width
- 2100mm
- Power pack
- 2.2Kw hydraulic pump
- Available voltage of power supply
- 100V-480V, 1 or 3 Phase, 50/60Hz
- Operation mode
- Key switch
- Operation voltage
- 24V
- Safety lock
- Anti-falling lock
- Lock release
- Electric auto release
- Rising / descending time
- <35s
- Finishing
- Powdering coating
Product engineering
Low-Ceiling Tilting Parking Lift, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
