Engineering overview

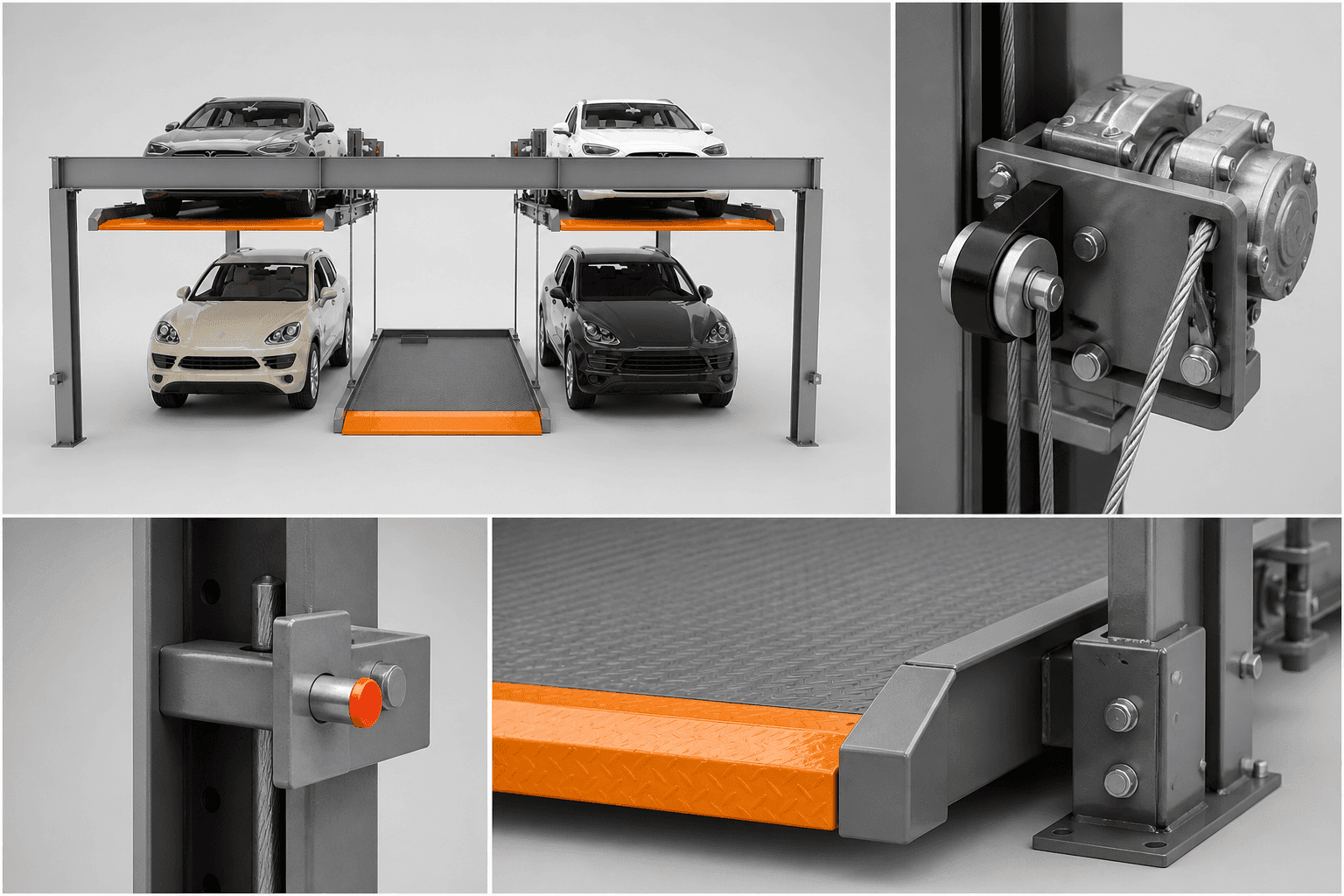

Wide-span four-car parking arrangement
The twin-platform layout is supported by realistic wire-rope drive, positive locking hardware and a reinforced load-bearing platform frame.
Two-level parking lifts
Multi-Platform Parking Lift
Can parking lifts go vertical and horizontal at the same time? The answer is Multi-Platform Parking Lift, two level multi-platform parking lift that offers 4 or max 6 parking spaces. It’s much more space-efficient than multiple lifts due to the absence of columns between the platforms. Each platform in the system is independent from each other, making the parking process as convenient as possible. It’s also featured by large capacity, fast speed and high safety that assured by commercial grade power pack, robust hydraulic cylinder and strong steel cables.
YFYS engineered parking systems2500kg /5500lbsLifting capacity
2100mmLifting height
2200mmUsable platform width
8-12m/minLifting speed
System overview
Engineered for practical parking capacity.
Can parking lifts go vertical and horizontal at the same time? The answer is Multi-Platform Parking Lift, two level multi-platform parking lift that offers 4 or max 6 parking spaces. It’s much more space-efficient than multiple lifts due to the absence of columns between the platforms. Each platform in the system is independent from each other, making the parking process as convenient as possible. It’s also featured by large capacity, fast speed and high safety that assured by commercial grade power pack, robust hydraulic cylinder and strong steel cables.
Product highlights
Can parking lifts go vertical and horizontal at the same time? The answer is Multi-Platform Parking Lift, two level multi-platform parking lift that offers 4 or max 6 parking spaces. It’s much more space-efficient than multiple lifts due to the absence of columns between the platforms. Each platform in the system is independent from each other, making the parking process as convenient as possible. It’s also featured by large capacity, fast speed and high safety that assured by commercial grade power pack, robust hydraulic cylinder and strong steel cables.
Triple-wide system for 6 cars
Easier & safer access of ground vehicles
2700kg capacity per platform
Standard lifting height: 2100mm
Full-width platform of 2200mm
Rugged posts & beams construction with H steel
Hydraulic cylinder lifting mechanism per platform
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Multi-Platform Parking Lift
- Lifting capacity
- 2500kg /5500lbs
- Lifting height
- 2100mm
- Usable platform width
- 2200mm
- Available voltage of power supply
- 100V-480V, 1/3 Phase, 50/60Hz
- Operation mode
- IC card/ Manual input
- Control method
- PLC
- Operation voltage
- 24V
- Lifting speed
- 8-12m/min
- Lock release
- Electric auto release
- Finishing
- Powdering coating
Product engineering
Multi-Platform Parking Lift, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
